SATEL OEM RF MODEM MODULES



For your equipments requesting RF communication interface, SATEL's OEM RF modules represent an excellent solution. Instead of developing and manufacturing a sensitive product for small or medium quantities, you can save on costs and guaranty the availability of a proven and performent SATEL OEM radio solution.

SATEL has a wide variety customised radio modems. Our customised radio modems are based on time-tested SATEL products, with custom form-factors to meet your needs. Our typical customisation project requires large quantities and constant communication with our design staff. Please feel free to contact your local SATEL distributor or us to discuss of the existing customised radio modems and your specify need.

Over the past 20 years, SATEL has worked with industry leaders to design data radio
solutions for production and research needs in broad applications. Our reputation has grown as an innovator of dependable and reliable equipment designed for demanding environments.

SATEL provides OEM model modules to be integrated in any remote device trough a serial interface connection. There are various modules with Tx, Rx or Rx/Tx communication possibilities with or without housing. For volume applications it's possible to make a special execution.

SATELLINE-M3-TR3
UHF Data Transceiver Module

Frequency range
403 ... 473 MHz
Tuning range 70 MHz
Channel spacing 12.5 / 25 kHz software selectable
Sensitivity
 -116 dBm
Carrier power 1 W
Data Speeds
 radio 19200 bps
serial 115200 bps
Operating Voltage
 4VDC
Interface
 CMOS / UART
Size/Weight
 57 x 36 x 6.7 mm / 18 g
Connectors
 1.27 mm pitch socket / U.FL
Power consumption
 RX 0.73 W
TX 4.70 W

SATELLINE-M3-TR3 is a UHF data transceiver module in a lightweight single PCB structure. It is designed to be integrated into a host device, for instance for transfer of GNSS correction data in a land surveying rover or RTK base station.

SATELLINE-M3-TR3 is equipped with all necessary features; such as 70 MHz tuning range (403...473 MHz) in one hardware, selectable channel width, AES128-bit encryption available for secure transmission and low power consumption. 1W output power in conjunction with a very sensitive receiver are the guarantee of a reliable data connection.

The configuration of the radio module can be made by using the SATEL SL-commands or SATEL Configuration Manager -software.

SATELLINE-M3-TR3 is compatible with widely used SATELLINE-3AS and -EASy radio modems and also with other manufacturers’ radio protocols.

Available model and product order codes

 YM7000 SATELLINE-M3-TR3
YM7100 SATELLINE-M3-TR3 (without AES128)





SATELLINE-M3-TR4
UHF Data Transceiver Module
with 8FSK and 16FSK modulation


SATELLINE-M3-TR4 is a UHF data transceiver module in a lightweight single PCB structure. It is designed to be integrated into a host device, for instance for transfer of GNSS correction data in a land surveying rover or RTK base station.

It is equipped with all necessary features; such as 70 MHz tuning range (403...473 MHz) in one hardware, selectable channel width and low power consumption. The radio module configuration can be done with the SATEL SL-commands or SATEL Configuration Manager -software. SATELLINE-M3-TR4 is compatible with widely used SATELLINE-3AS and -EASy radio modems and also with other manufacturers’ radio protocols.

SATELLINE-M3-TR4 is a flexible module which makes it a suitable unit for different uses. It is an updated version of M3-TR3 module. It has two modulations more; 8FSK and 16FSK which gives more speed to the radio interface.
Following items in the module can be customized upon request*:
- Mechanical fastening and its type
- Interface and antenna connector types
SATELLINE-M3-TR4 can be added to existing systems; it is compatible with widely used SATELLINE-3AS and -EASy radio modems and it supports also other manufacturers’ radio protocols (such as Pac-Crest-4FSK, -GMSK, -FST).
The channel bandwidths 12.5 and 25 kHz are software selectable and SATELLINE-M3- TR4 has a wide 70 MHz tuning range. End- users can select the operation frequency within the range of 403...473 MHz.
The module can be manufactured with an option for 128-bit encryption on the air interface to ensure the privacy.

*For larger orders also shape of the PCB can be customized. Please contact us to learn more about the customization options.

Available model and
product order codes

YM7400 SATELLINE-M3-TR4
YM7410 SATELLINE-M3-TR4 (without AES128)

SATELLINE-M3-TR4 OA
UHF Data Transceiver Module
for traffic application (Dutch KAR)

SATELLINE-M3-TR4 OA is the next generation solution for data communications in traffic applications. It complies with the requirements of the Dutch KAR* (Korte Afstand Radio) specification for Public Transportation data communications.

The SATELLINE-M3-TR4 OA module is designed to be integrated in onboard computers.  It provides a reliable private data communication links to several services. The module is compatible with existing SATELLINE-3AS-OA systems.

The basic applications include traffic light priority requests, the display of real-time information on anticipated arrival times at bus stops, vehicle tracking and communication with the central transportation control computer.


Available models and product order codes

SATELLINE-M3-TR4 (YM7450)









SATELLINE-M3-TR8
Data Transceiver Module 869MHz lincence-fee

SATELLINE-M3-TR8 is a UHF data transceiver module in a lightweight single PCB structure. It is designed to be integrated into a host device.
The radio module configuration can be done with the SATEL SL- commands or SATEL Configuration Manager -software.

SATELLINE-M3-TR8 is compatible with widely used SATELLINE-EASy 869 radio modems.
SATELLINE-M3-TR8 is a flexible module which makes it a suitable unit for different uses. It is ready to use on the Pan-European licence free channels with default settings and is allocated for narrowband telemetry, alarm and data transfer applications. Following items in the module can be customized upon request*:

- Mechanical fastening and its type
- Interface and antenna connector types

SATELLINE-M3-TR8 can be added to existing systems; it is compatible with widely used SATELLINE-EASy 869 radio modems. The module can be manufactured with an option for 128-bit encryption on the air interface to ensure the privacy. SATELLINE-M3-TR8 is supplied without a housing in PCB format with RF-shielding, facilitating installation in to the customer’s own housing or into a host device.

*For larger orders also shape of the PCB can be customized. Please contact us to learn more about the customization options.





SATELLINE M3-TR8 (869MHz module)



Brochure


SATELLINE-M3-R3
Data Receiver Module

Frequency range
403 ... 473 MHz
Tuning range 70 MHz
Channel spacing 12.5 / 25 kHz
Sensitivity
 -114 dBm
Data Speed
 19200 bps
Operating Voltage
 +4VDC
Interface
 CMOS / UART
Size/Weight
 56 x 36 x 6mm /18g
Connectors
 1.27 mm pitch socket / U.FL
Power cons.
 0.5 W

SATELLINE-M3-R3 is a UHF data receiver module in a lightweight single PCB structure. It is designed to be integrated into a host device, for instance land surveying rover for receiving GNSS correction data.

SATELLINE-M3-R3 is equipped with all necessary features; such as 70 MHz tuning range (403...473 MHz) in one hardware, selectable channel width and low power consumption. The configuration of the radio module can be made by using the SATEL SL-commands or SATEL Configuration Manager -software.

SATELLINE-M3-R3 is compatible with widely used SATELLINE-3AS product family and also with other manufacturers’ radio protocols.


Available models and product order codes

SATELLINE-M3 R3 (YM6900)











Brochure


User Guide



SATELLINE-M3-VHF
Radio Transmitter Module

Frequency range
135...174, 218 ... 238 MHz
Tuning range 135 … 155, 138 … 160 MHz 155 … 174, 218 … 238 MHz
Channel spacing 12.5 / 25 kHz
Sensitivity
Carrier power
 -115 dBm
5W (duty cycle 20%)
Data Speed
 19200 / 38400bps
Operating Voltage
 9..30Vdc
Interface
 RS232/422/485
Size/Weight
 114 x 61 x 22mm / 265g
Connectors
 D15 / TNC or SMA female
Power consumption
 1.7W RX
6.6W @ 1W, 22W @ 5W TX

The SATELLINE-M3 VHF is a small and lightweight radio modem designed for integration into the user’s terminal equipment. The modem and transceiver are enclosed in an aluminum housing. All the applicable radio, EMC and electrical safety requirements are met without any additional casing.

SATELLINE-M3 VHF transceiver modems are compatible with SATELLINE-3AS VHF radio modems operated on the same frequency range.

Available models and product order code

SATELLINE-M3 VHF (YM6000)






SATELLINE-M3-TR1
Radio Transmit and Receiver Module

Frequency range 403 ... 470 Mhz
Tuning range 67 Mhz
Sensitivity -113 ... -110 dBm (BER < 10 E-3)
Output Power
100mW .. 1W programmable

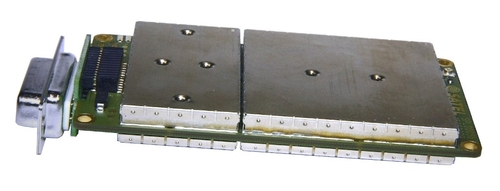

SATELLINE-M3-TR1 radio transceiver module has been designed to operate on the wide 403...473 MHz frequency range, offering for use the whole 70 MHz tuning range. The M3-TR1 is a flexible product, enabling many user choices for its functioning and construction. It can be supplied without a housing as a small-size module or in an aluminum housing. Customers can also specify the interface connector to be D15 female, 26-pin male strip or 26-pin female socket. The antenna connector can be TNC, SMA, MCX or MMCX. The applicable serial interfaces for M3-TR1are RS-232, RS-422, LVTTL or TTL.

The available operating voltage has an effect on the choice of system components. This has been taken into account when designing SATELLINE-M3-TR1; this model has two operating voltage levels +3 ... +9 VDC and +6 ... +30 VDC. The level can be changed by replacing the PWR module.

To offer the user more flexibility, M3-TR1 is compatible with the widely used SATELLINE-3AS radio modem family and can also be included in systems based on other manufacturers’ protocols. All the channel spacings 12.5, 20 and 25 kHz are software-selectable and thanks to good receiver sensitivity, the output power of 1 W enables a long radio range.





Brochure

User Guide


Available models and product order codes

SATELLINE-M3-TR1 (YM6300)





SATELLINE-M3-TR1 869
A licence free UHF Radio Transceceiver Module

Frequency range
Channel Spacing
 869.400 ... 869.650 Mhz
25KHz fixed
Sensitivity
Tx Power
Data speed
Oper. voltage
Power cons.
Dim / weigth
 -111dBm
500mW
19200bps
+6..30Vdc
<1.2W (RX), <3.8W(TX)
88 x 49 x 9mm / 50g
Interface RS232, TTL, LVTTL, RS422


SATELLINE-M3-TR1 869 transceiver module provides you a compact, flexible and lightweight solution. SATELLINE-M3-TR1 869 is ready to use on the Pan-European licence free 869 MHz channels with default settings. It is allocated for narrowband telemetry, alarm and data transfer applications.

SATELLINE-M3-TR1 869 is HW compatible with SATELLINE-EASy 869 modems. Programmable 0.5 W output power and 25 kHz channel width ensures a successful connection.

The small current consumption and lightweight design makes this module an excellent choise for applications that require long range distances.

SATELLINE-M3-TR1 869 can be supplied without a housing as a small-size module or in an aluminium housing. Customers can also specify the interface connectror to be D15 female, 26-pin male strip or 26-pin female socket. The antenna connector can be TNC, SMA, MCX or MMCX. The applicable serial interfaces for TR1 869 are RS-232, RS-422, LVTTL or TTL.

Available model and product order code:

SATELLINE-M3-TR1 869 (YM6301)
