MODEM ACCESSORIES




- Housings
- Modem Interface Adapters with Programming Switch
- Modem Interface Adapter Cables




Housings for SATELLINE radio modems


H-WPm2
:
weather proof housing for SATELLINE 3AS, EASy and  869 modems.
IP-classification for this housing is IP53


H-WP :
weather proof housing for SATELLINE 3AS, EASy and 869 modems. Material for this housing is polycarbonate and the IP-classification is IP43.

H-WP-X2 :
similar weather proof housing than H-WP but for Epic modems.


Ex-Proof Housing : Contact us !







H-WPm2


H-WP



Interface Adapters with Programming Switch:

NARS-1F  :
with D15 male / D9 female -connectors,
650 mA fuse, including power supply wires and
programming switch.
(to be used with SATELLINE EASy, 869, 3AS)


NARS-1F-4A :
similar than NARS-1F, but with 4A fuse
(to be used only with SATELLINE EASy and 3AS Epic).

  • NARS-1F-4A-SC :
    D15 female / D9 female -connectors,
    4A fuse, 2.1 mm DC socket.



  • NARS-2
    with D15 male / screw connectors,
    650 mA fuse adapter for RS-422 / 485 interface.

  • NARS-2-4A :
    similar than NARS-2, but with 4A fuse
    (to be use only with Satelline 3AS
    Epic)

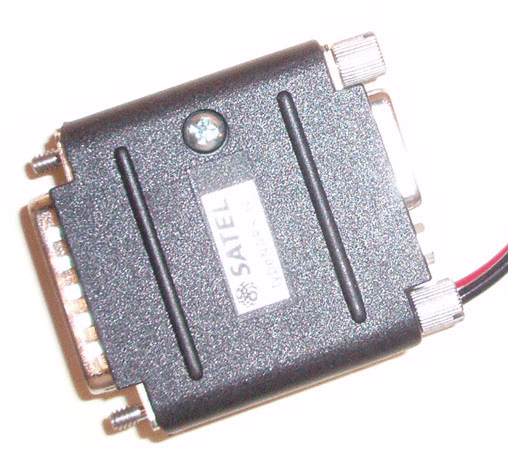

NARS-1F










NARS-2









Modem Interface Adapter Cables :

  • Altough a simple interface adapter (presented above) is very often sufficient to connect the modem to a remote terminal unit, a serial interface adapter cable  having special connectors may also be need. For this purpose we supply the following Adapter Cables  :

  • NARS-ST :
  • lenght 0.4 m, D15 female / ODU 8-pin male
    (for 3ASd Epic Pro and Epic Pro 35 W 8-pin)

  • NARS-35W :
  • lenght 0.3 m, D15 female / ODU 7-pin male
  • (for 3ASd Epic Pro 35 W 7-pin)

    CRS-1M
    2m cable including power supply wires,
    with D15 / D25 Male -connector

    CRS-1F
    2m cable including power supply wires,
    with D15 / D25
    Female -connectors

  • CRS-2M
  • 2m cable, including power supply wires,
    with D15/D9 Male-connectors


  • CRS-2F
  • 2m cable, including power supply wires,
    with D15/D9 Female-connectors

  • CRS-PB
  • 2m cable, including power supply wires,
    with D15/D9 Male-connectors for RS-485 interface.

  • CRS-18F  (for SATELLINE 1870 radio modems)
    1.5m cable including power supply wires, PROG and SHDN wires, with DIN4165-16 / D9 Female-connectors
    for SATELLINE-1870 modems.

  • CRS-18IF (for I-LINK I/O modules)
    40cm cable with DIN4165-16 / D15 female -connectors, to be used between SATELLINE-1870 radio modems and I-LINK 100

    RS-9 (serial interface cable)
  • 1 or 2m cable with D9 male / D9 female -connectors

  • CRS-TSU  (for I-LINK I/O modules)
    2m or 50cm cable with D15 male / D15 female connectors,
    to be used between SATELLINE-2ASxE, 3AS or Epic rodems and I-LINK 100 I/O modules.

  • CRS-NMS  (for NMS PC connection)
    1.5m cable with D15 male / 2 x D9 female connectors from Master modem to user system and NMS PC, incIuding power supply wire
